SEEDING COMBINATION GAL COMBO
DISC QUAD RUBBER SUSPENSION DAMPING
465 MM DIAM.DISCS ON MAINTENANCE FREE MANDAM HUBS
FOLDING SIDE SCREENS WITH SPRING PROTECTION
600 MM DIAM. PACKER ROLLER (OPTION)
DEPTH & ANGLE ADJUSTMENT (TURNBACKLE)
350 MM DIAM. DISC COULTER DOUBLE DISC (OPTION)
250 MM DIAM. PRESS WHEELS
FOLDING STEPS
TWO LOW POSITIONED DISTRIBUTION HEADS
SEED FLOW METERING UNIT ON EACH HEAD
A PLATFORM WITH A HANDRAIL
1300 L HOPPER WITH INSPECTION WINDOW
TOP FLAP OR EASY LOADIND
HYDRAULIC DRIVE FAN MIN. OIL FLOW 40L/MIN
HYDRAULIC ADJUSTMENT OF WORKING DEPTH (HRGP)

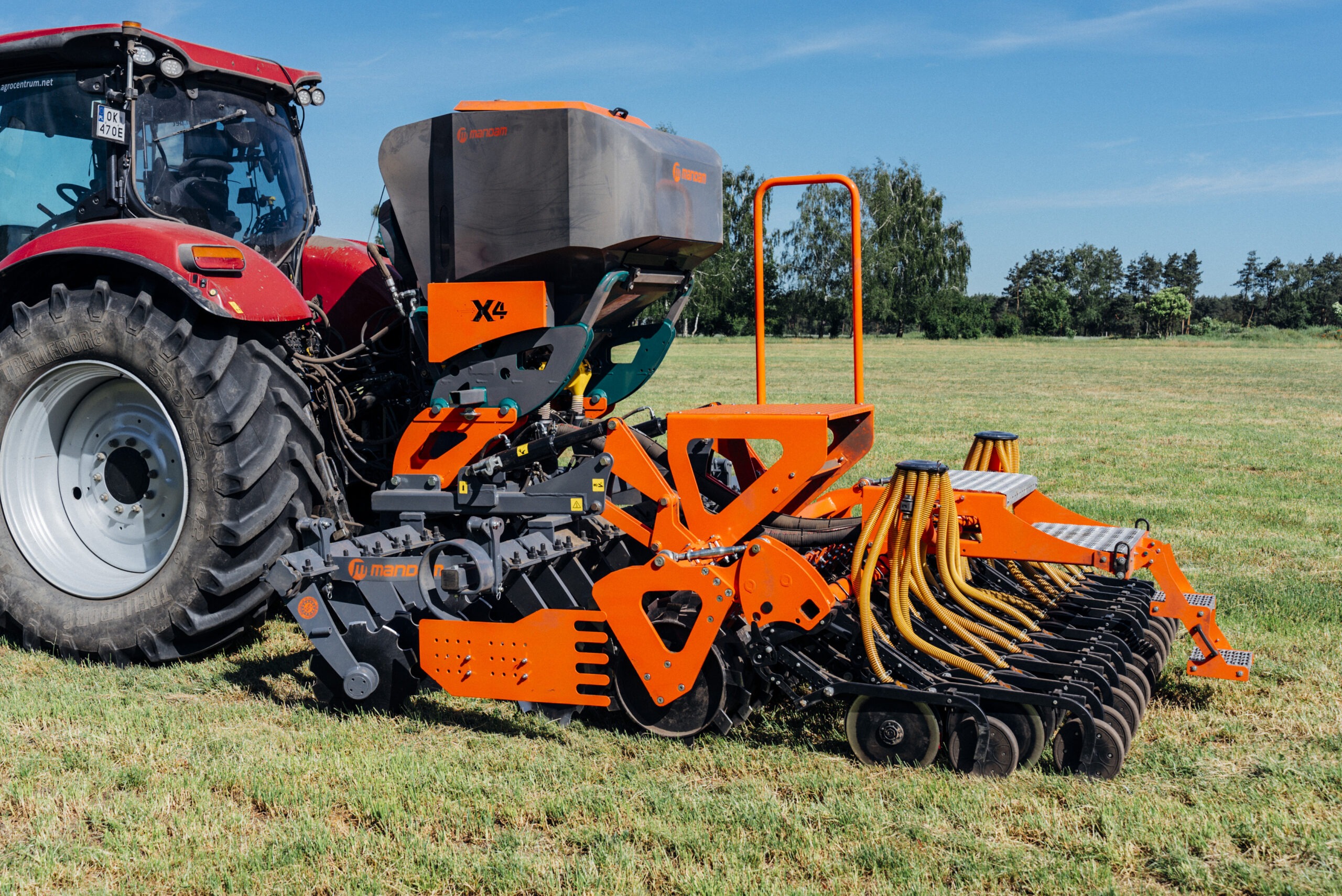

X4 COMPUTER UNIT
CELL DISTRIBUTORS UNIT WITH FEELERS
CALIBRATION BUTTON
SEEDING COMBINATION GAL COMBO
Description
SEEDING COMBINATION GAL COMBO We’re offering a combination of the compactdisc harrow and a pneumatic seed drill.Mandam made GAL-P 3,0m wide disc harrowis equipped with shortened hub assembliesand smaller 465mm diameter notched discs.Such a configuration provides a lower centerof gravity. GAL-P comes with hydraulic depthadjustment (HRGP) and 5-year unlimitedwarranty hubs as standard. There are threerollers to choose from: Packer 600, Rubber500 or Disc 600mm.Pneumatic seed drill (italian made) is designedfor perferct integration with our disc harrow. Dueto the low location of distribution heads andshort feeding tubes this seeder has outstandingaccuracy in seed delivery. Each coulter sectionhas individually adjustable ground pressure upto 45 kg pre unit (to compensate tractor trackssoil compression). There are 24 seeding units on3m witdh 12,5cm spacing. Single- or double-disc coulter units are available. Easy adjustabledistribution units allow operation in a rangefrom 1 to 300 kg/Ha (feeler adjustment). Themanual section cut off system is standard, whilethe electromechanical tramline management isan option. Recommended operation speed of 11-14 km/h. Minimal oli flow of 40l/min with directreturn is required.
Technical data
| # | Typ |  |  |  |  |  |  |  |  |  |
|---|---|---|---|---|---|---|---|---|---|---|
| m | pcs | cm | L | pcs | pcs | HP | kg | |||
| 5130 | GAL COMBO 3,0/20 SD | 3,0 | 67 | 24/465 | 15 | 1300 | 20 x SD | - | 118 (160) | 2410 |
| 5135 | GAL COMBO 3,0/24 SD | 3,0 | 67 | 24/465 | 12,5 | 1300 | 24 x SD | - | 118 (160) | 2410 |
| 5140 | GAL COMBO 3,0/20 DD | 3,0 | 67 | 24/465 | 15 | 1300 | 20 x DD | 118 (160) | 2410 | |
| 5145 | GAL COMBO 3,0/24 DD | 3,0 | 67 | 24/465 | 12,5 | 1300 | 24 x DD | 118 (160) | 2410 |
Optional accesories
- Packer roller d=600 mm
- Rubber roller 500 mm
- Disc roller 600 mm
- Extra charge S shape spring tines 3 meters covering harrow
- Tramline 2 + 2
- Tramline 3 + 3
- Cable to detect speed from tractor (plug in ISO11786)
- Shut-off / exclusion by electrical actuating / 2 sections
- Transformation into ISOBUS (include deduction of X4 monitor system)
- 7-pin lift sensor cable (in place of the t.p.h. mounted finger sensor) no surcharge
- Set of Hydraulic disc row makers
