Description
GROT is available in two working widths with a choice of shear bolt or nonstop protection (NS type) versions.

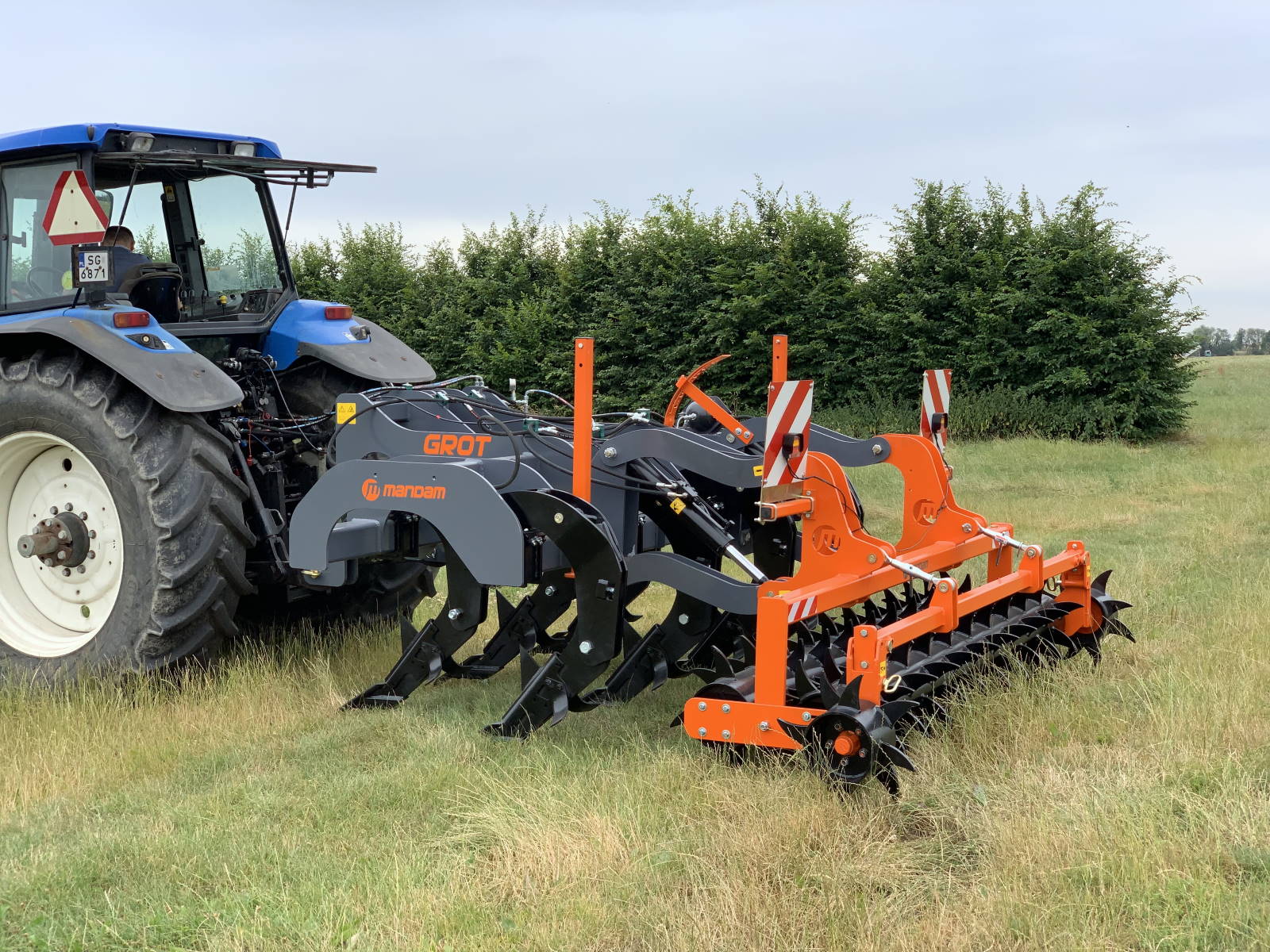

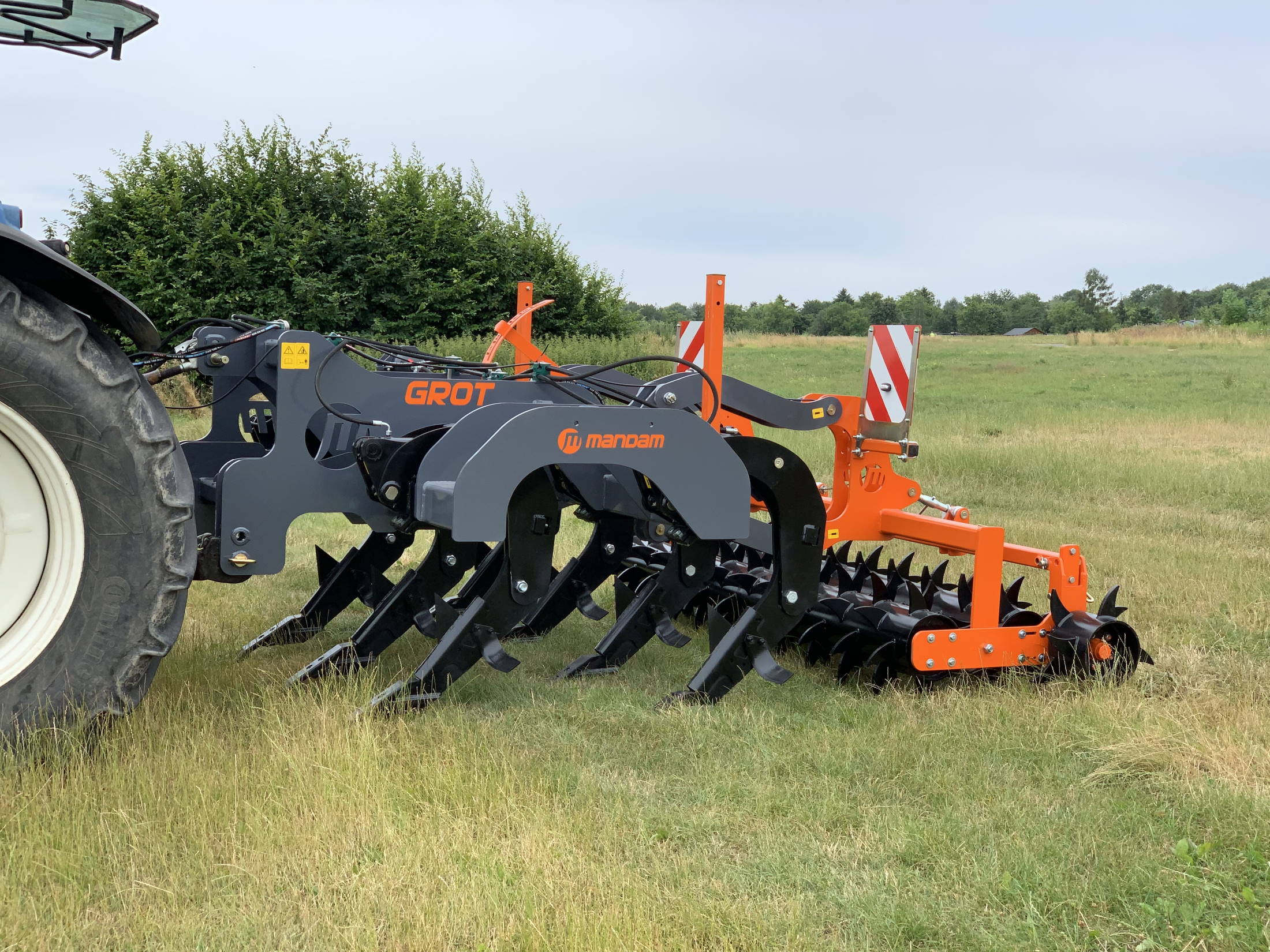

GROT chisel plows are a great alternative to a traditional plow. They make it quick and cheap work replacing the
traditional plow. Chisel plows can work at great depths (approx. 55 cm), even in extremely difficult soil conditions.
When chisel plows work at a great depth, hard soil layers are torn off, the soil is loosened, and crop residues
are covered. Working system consists of adjustable side wing shares, replaceable shin blades and reversible

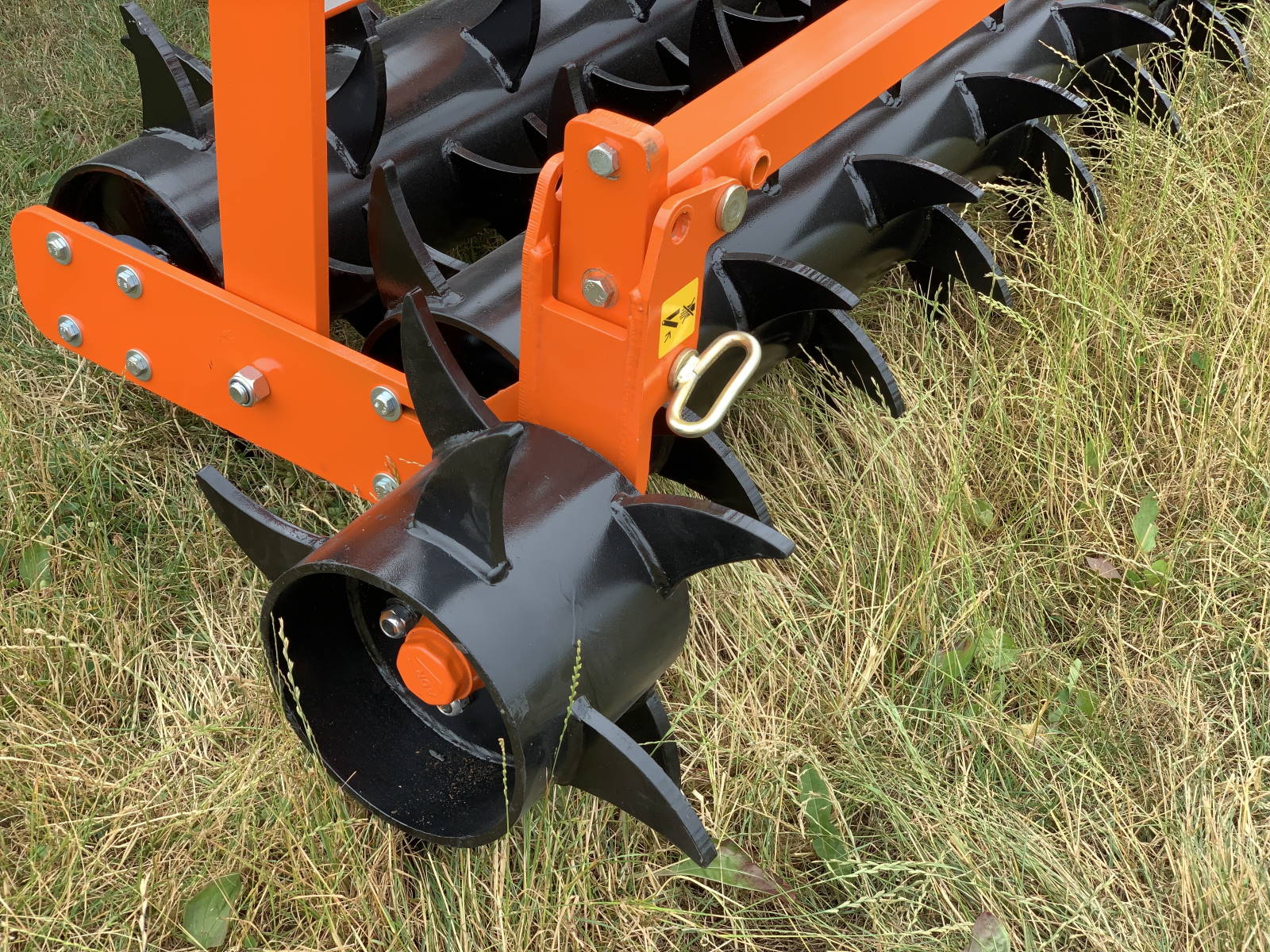

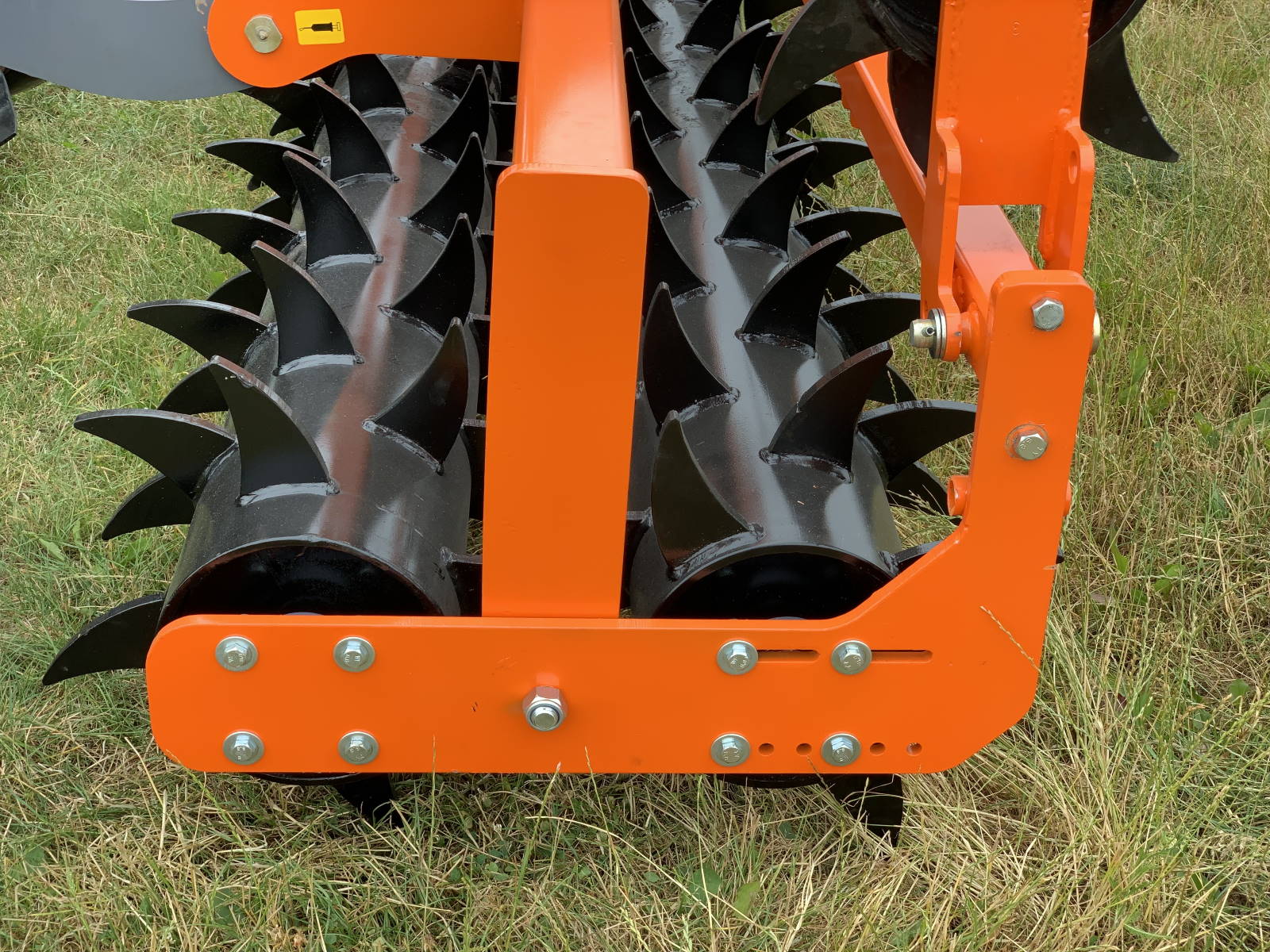

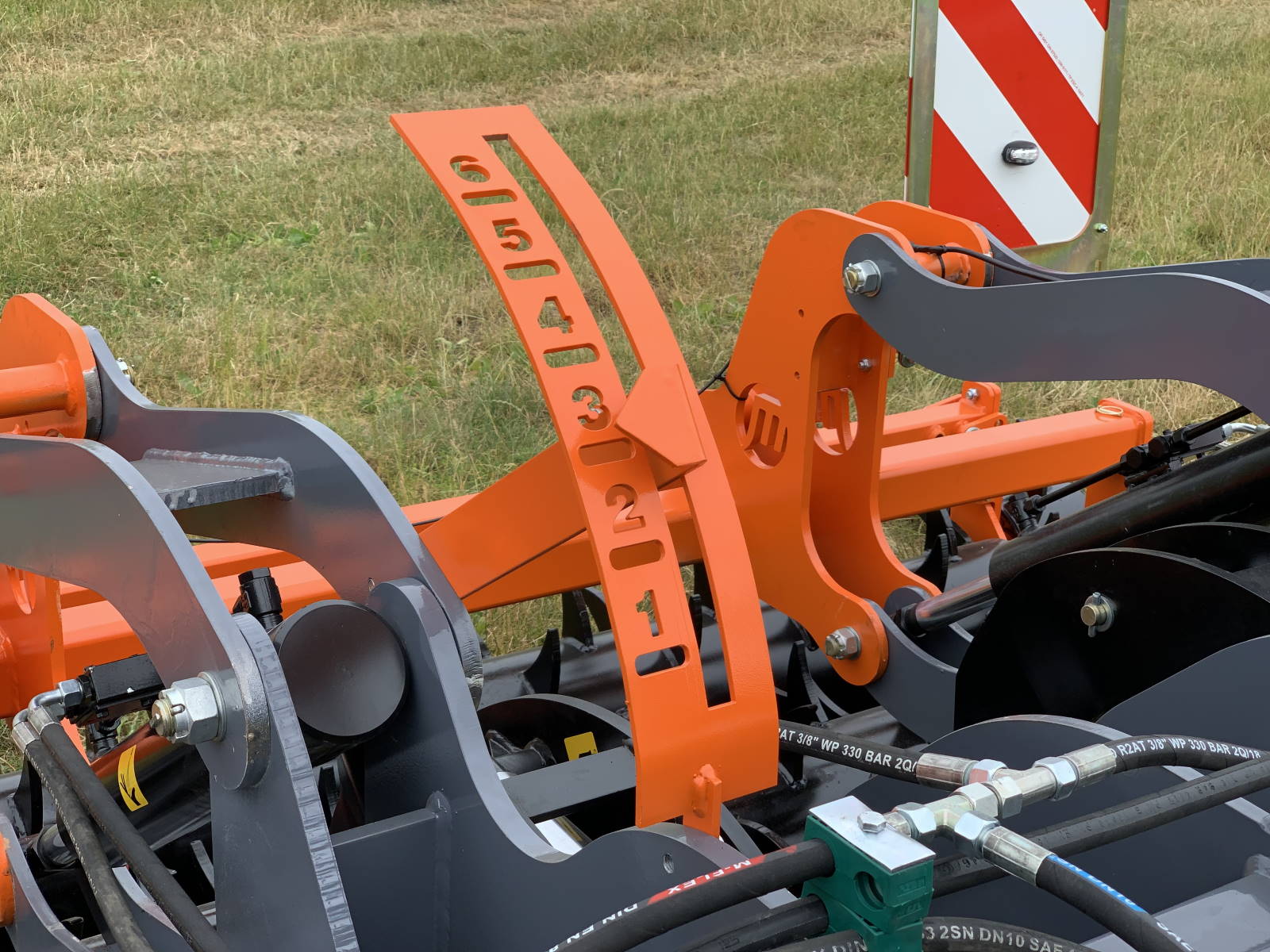

sharepoints. Double spike roller section provides better field compression and aeration. Hydraulic working depth
adjustment is a standard GROT equipment. There are few paid options available such as: folding side rollers
(recommended for 7-teeth versions), reinforced sharepoints, traffic LED lights.
Technical data
| # | Typ |  |  |  |  |  |  |  |  |
|---|---|---|---|---|---|---|---|---|---|
| m | pcs | mm | mm | HP | kg | ||||
| 2670 | GAL-C 2,5 | 2,5 | - | Rubber | 20 | 900 | 560 | 80 | 1208 |
| 2600 | GAL-C 3,0 | 3,0 | - | Rubber | 24 | 900 | 560 | 100 | 1314 |
| 2635 | GAL-C 3,5 | 3,5 | - | Rubber | 28 | 900 | 560 | 120 | 1495 |
| 2605 | GAL-C 4,0 | 4,0 | - | Rubber | 32 | 900 | 560 | 140 | 1849 |
| 2610 | GAL-C 4,0 H | 4,0 | + | Rubber | 32 | 1000 | 560 | 160 | 2215 |
| 2615 | GAL-C 4,5 H | 4,5 | + | Rubber | 36 | 1000 | 560 | 170 | 2395 |
| 2620 | GAL-C 5,0 H | 5,0 | + | Rubber | 42 | 1000 | 560 | 180 | 2586 |
| 2630 | GAL-C 6,0 H | 6,0 | + | Rubber | 48 | 1000 | 560 | 200 | 2923 |
Optional accesories
- Reversible weld-on share point
- Side spike roller Ø 560 mm (left & right)
- LED lights
